SpringCloud Bus动态刷新全局广播

SpringCloud Bus动态刷新全局广播

• 环境搭建
• 设计思想
• 开始添加BUS总线支持
• 测试

类似于RabbitMQ的fanout模型

环境搭建

1、先在Linux上安装好RabbitMQ环境，并且将RabbitMQ启动

2、演示广播效果，增加复杂度，再以3355为模板再制作一个3366

3、cloud-config-client-3366
①POM

<dependencies>

    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-config</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>
    <dependency>
        <groupId>com.sl.springcloud</groupId>
        <artifactId>cloud-api-commons</artifactId>
        <version>${project.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
    </dependency>

    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

②YML

server:
  port: 3366

spring:
  application:
    name: config-client
  cloud:
    config:
      label: master
      name: config
      profile: dev
      uri: http://localhost:3344
eureka:
  client:
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka
management:
  endpoints:
    web:
      exposure:
        include: "*"


③主启动

@EnableEurekaClient
@SpringBootApplication
public class ConfigClientMain3366 {
    public static void main(String[] args) {
            SpringApplication.run( ConfigClientMain3366.class,args);
        }
}

④业务类(Controller)

@RestController
@RefreshScope
public class ConfigClientController {

    @Value("${server.port}")
    private String serverPort;

    @Value("${config.info}")
    private String configInfo;


    @GetMapping("/configInfo")
    public String getConfigInfo(){
        return "serverPort:"+serverPort+"\t\n\n configInfo: "+configInfo;
    }


}

设计思想

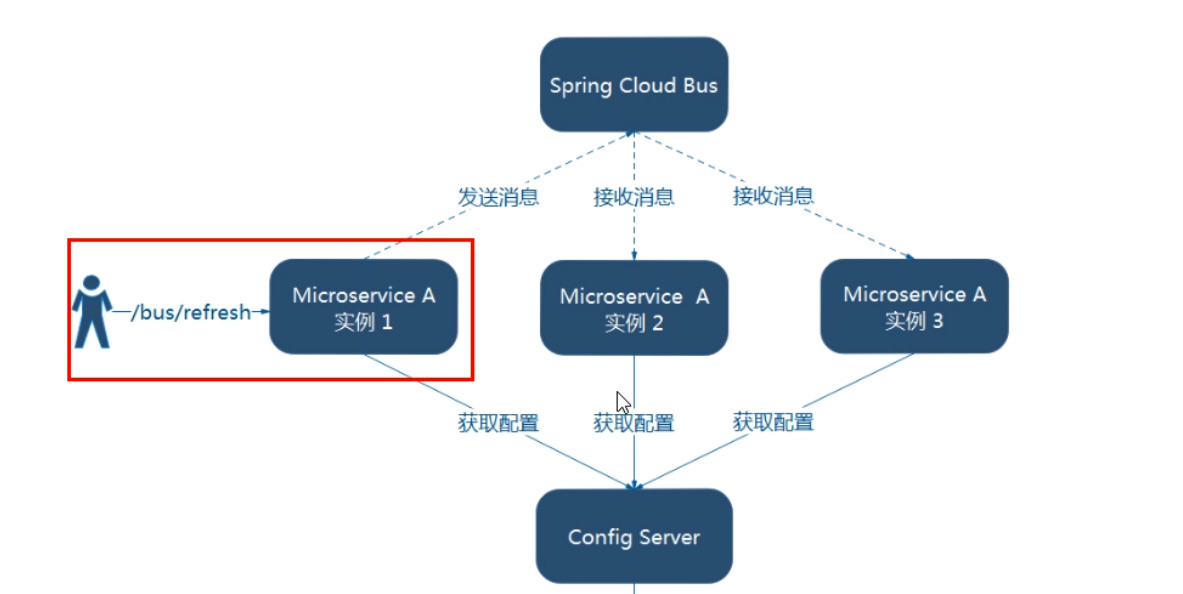

第一种：利用消息总线触发一个客户端/bus/refresh,而刷新所有客户端的配置

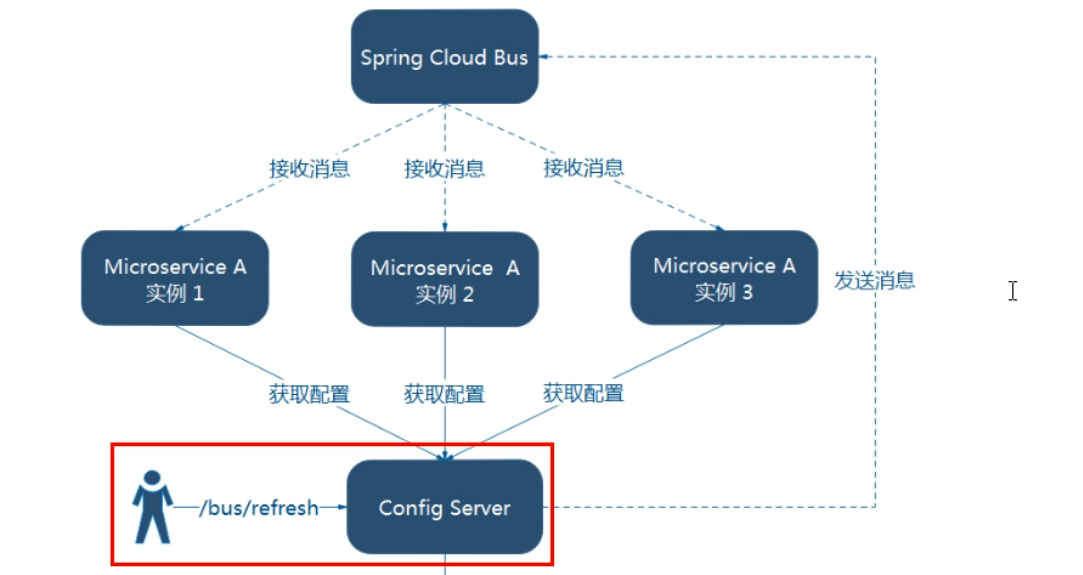

第二种：利用消息总线触发一个服务端ConfigServer的/bus/refresh端点,而刷新所有客户端的配置（更加推荐）

图二的架构显然更加合适，图一不适合的原因如下
1、打破了微服务的职责单一性，因为微服务本身是业务模块，它本不应该承担配置刷新职责
2、破坏了微服务各节点的对等性
3、有一定的局限性。例如，微服务在迁移时，它的网络地址常常会发生变化，此时如果想要做到自动刷新，那就会增加更多的修改

开始添加BUS总线支持

1、给cloud-config-center-3344配置中心服务端添加消息总线支持
pom

<dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bus-amqp</artifactId>
</dependency>

yml

server:
  port: 3344
spring:
  application:
    name: cloud-config-center
  cloud:
    config:
      server:
        git:
          uri: git@github.com:fFee-ops/springcloud-config.git  #填写你自己的github存放配置文件仓库的路径
          #  搜索路径
          search-paths:
            - springcloud-config
      #  读取分支
      label: master


  rabbitmq:
    host: 192.168.80.33
    port: 5672
    username: guest
    password: guest

eureka:
  client:
    service-url:
      defaultZone:  http://localhost:7001/eureka

management:
  endpoints:
    web:
      exposure:
        include: 'bus-refresh'

2、给cloud-config-center-3355客户端添加消息总线支持
pom

<dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bus-amqp</artifactId>
</dependency>

yml

server:
  port: 3355

spring:
  application:
    name: config-client
  cloud:
    config:
      label: master  # 分支名称
      name: config   # 配置文件名称
      profile: dev   # 配置文件后缀  综合 上面三个就是，master分支上的config-dev文件被读取，即http://localhost:3344/master/config-dev
      uri: http://localhost:3344  # 配置中心地址

  rabbitmq:
    host: 192.168.80.33
    port: 5672
    username: guest
    password: guest


eureka:
  client:
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka

#  暴露监控端口
management:
  endpoints:
    web:
      exposure:
        include: "*"

3、给cloud-config-center-3366客户端添加消息总线支持
pom

<dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bus-amqp</artifactId>
</dependency>

yml

server:
  port: 3366

spring:
  application:
    name: config-client
  cloud:
    config:
      label: master
      name: config
      profile: dev
      uri: http://localhost:3344

  rabbitmq:
    host: 192.168.80.33
    port: 5672
    username: guest
    password: guest


eureka:
  client:
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka
management:
  endpoints:
    web:
      exposure:
        include: "*"

测试

1、修改Github上配置文件增加版本号
2、发送Post请求

curl -X POST “http://localhost:3344/actuator/bus-refresh”
一次发送，处处生效

3、配置中心：http://config-3344.com/config-dev.yml

4、客户端
①http://localhost:3355/configInfo
②http://localhost:3366/configInfo
③获取配置信息，发现都已经刷新了，达到了一次修改，广播通知，处处生效
